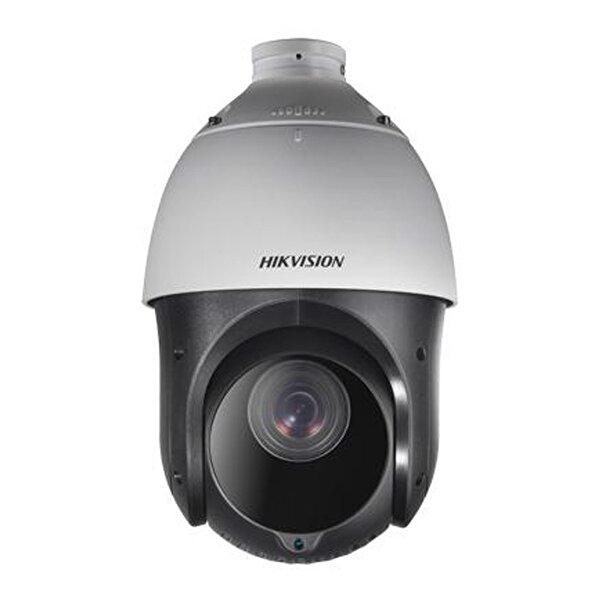

HIKVISION Hikvision Ds-2de4425iw-de 4mp 4,8-120mm Lens, 25x Optik Zoom H.265+ Ip Ptz Kamera

Hikvision DS-2DE4425IW-DE 4mp 4,8-120mm Lens, 25X Optik Zoom H.265+ IP PTZ Kamera 4-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome High quality imaging with 4 MP resolution Excellent low-light performance via powered-by-DarkFighter technology Clear imaging against strong back lighting due to 120 dB WDR technology Pan and tilt ability enables camera to monitor zones of interest 25x optical zoom allows for closer viewing of subjects in expansive areas Up to 100m IR range ensures safety at night Water and dust resistant (IP66) Lens FOVHorizontal field of view: 59.5° to 2.6° (Wide-Tele),Vertical field of view: 35.7° to 1.5° (Wide-Tele),Diagonal field of view: 66.6 to 3.0° (Wide-Tele) Zoom SpeedApprox. 3.6 s (optical lens, wide-tele) Working Distance10 mm to 1500 mm (wide-tele) Aperture RangeF1.6 to F3.5 Focal Length4.8 mm to 120 mm, 25× optical zoom Image Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Max. Resolution2560 × 1440 Main Stream50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720) Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Network Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform Simultaneous Live ViewUp to 20 channels User/HostUp to 32 users,3 levels: Administrator, Operator and User ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering Interface Audio Input1-ch audio input Audio Output1-ch audio output Network Interface1 RJ45 10 M/100 M Ethernet, PoE+ (802.3 at, class4) Compression Standard H.264+Support H.265+Support H.264 TypeBaseline Profile/Main Profile/High Profile Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG H.265 TypeBaseline Profile/Main Profile/High Profile Video Bitrate32 Kbps to 16384 Kbps Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM Audio BitrateG.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212/PCM: 32 Kbps/64 Kbps/128 Kbps SVCSupport Camera Module Image Sensor1/2.5" progressive scan CMOS Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON),0 Lux with IR White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp GainAuto/Manual Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s Day & NightIR Cut Filter Digital Zoom16× Privacy Mask24 programmable privacy masks Focus ModeAuto/Semi-automatic/Manual WDR120 dB WDR (not supported by full frame rate) Supplement Light IR Distance100 m Smart IRSupport PTZ Movement Range (Pan)360° endless Pan SpeedConfigurable, from 0.1°/s to 80°/s, ,Preset speed: 80°/s Movement Range (Tilt)From -15° to 90° (auto-flip) Tilt SpeedConfigurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s Proportional ZoomSupport Presets300 Patrol Scan8 patrols, up to 32 presets for each patrol Pattern Scan4 pattern scans, record time over 10 minutes for each scan Power-Off MemorySupport Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan 3D PositioningSupport PTZ Status DisplaySupport Preset FreezingSupport Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output Smart Features Basic Event DetectionMotion Detection, Video Tampering Detection, Exception Smart DetectionIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection Smart RecordANR (Automatic Network Replenishment), Dual-VCA ROIMain stream, sub-stream and third stream respectively support four fixed areas. General MaterialADC 12, PC+10% GF DimensionsΦ 164.5 mm × 290 mm (Φ 6.48" × 11.42") Approx. 2 kg (4.41 lb) Protection LevelIP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection Power 12 VDC, 2.0 A and PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class4 Max.: 18 W, including max. 7W for IR Working Temperature-30°C to 65°C (-22°F to 149°F) Working Humidity≤ 90%
