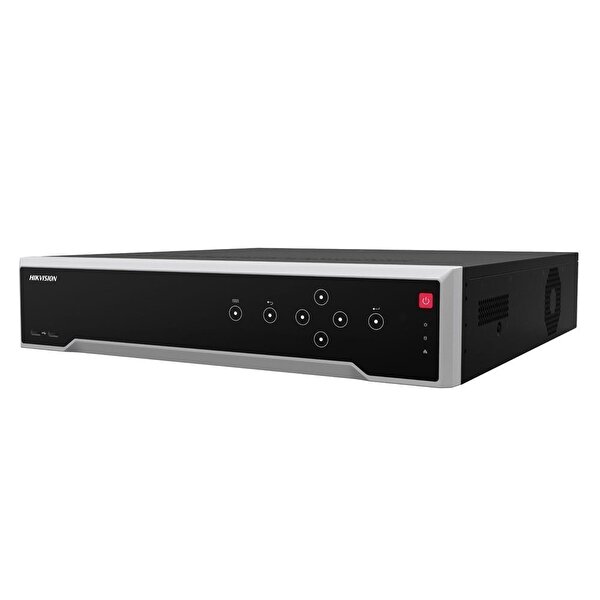

HIKVISION Hikvision Ds-7764ni-m4 64 Kanal 32mp 4 Sata H.265+ 400 Mbps 4k Nvr Kayıt Cihazı

Hikvision DS-7764NI-M4 64 Kanal 32mp 4 Sata H.265+ 400 Mbps 4K NVR Kayıt Cihazı 64 Kanal IP Kamera Desteği, H.265+ Sıkıştırma Teknolojisi, 32MP 8K Çözünürlük Desteği, 400bps Bant Genişliği, 4x14TB HDD Desteği, çift yönlü ses desteği, 1x HDMI (8K 1x VGA (1920x1080), 2x 10/100/1000 Mbps Ethernet Port, 1x eSATA Port. 64-ch 1.5U 8K NVR H.265+/H.265/H.264+/H.264 video formats Up to 64-ch IP camera inputs Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth 2 HDMI and 1 VGA interfaces, 8K or dual 4K video outputs Video And Audio IP Video Input 64-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. Incoming Bandwidth400 Mbps Outgoing Bandwidth400 Mbps HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. VGA Output1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Video Output ModeHDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) Decoding Decoding FormatH.265+/H.265/H.264+/H.264 Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. Synchronous Playback16-ch Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) Dual-Stream RecordingSupport Stream TypeVideo, Video & Audio Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 Network Remote Connection128 Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces RAID RAID TypeN/A Auxiliary Interface ESATA1 eSATA interface SATA4 SATA interfaces CapacityUp to 16 TB capacity for each HDD Serial Interface2 RS-485 (half-duplex), 1 RS-232 Alarm In/Out16/9 USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. DC 12V12 VDC, 1 A power output General Power Supply100 to 240 VAC, 50 to 60 Hz Consumption≤ 15 W (without HDD) Working Temperature-10 °C to 55 °C (14 °F to 131 °F) Working Humidity10% to 90% Chassis19-inch rack-mounted 1.5U chassis Dimension (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") Weight≤ 5 kg (without HDD, 11 lb.) Certification FCCPart 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
